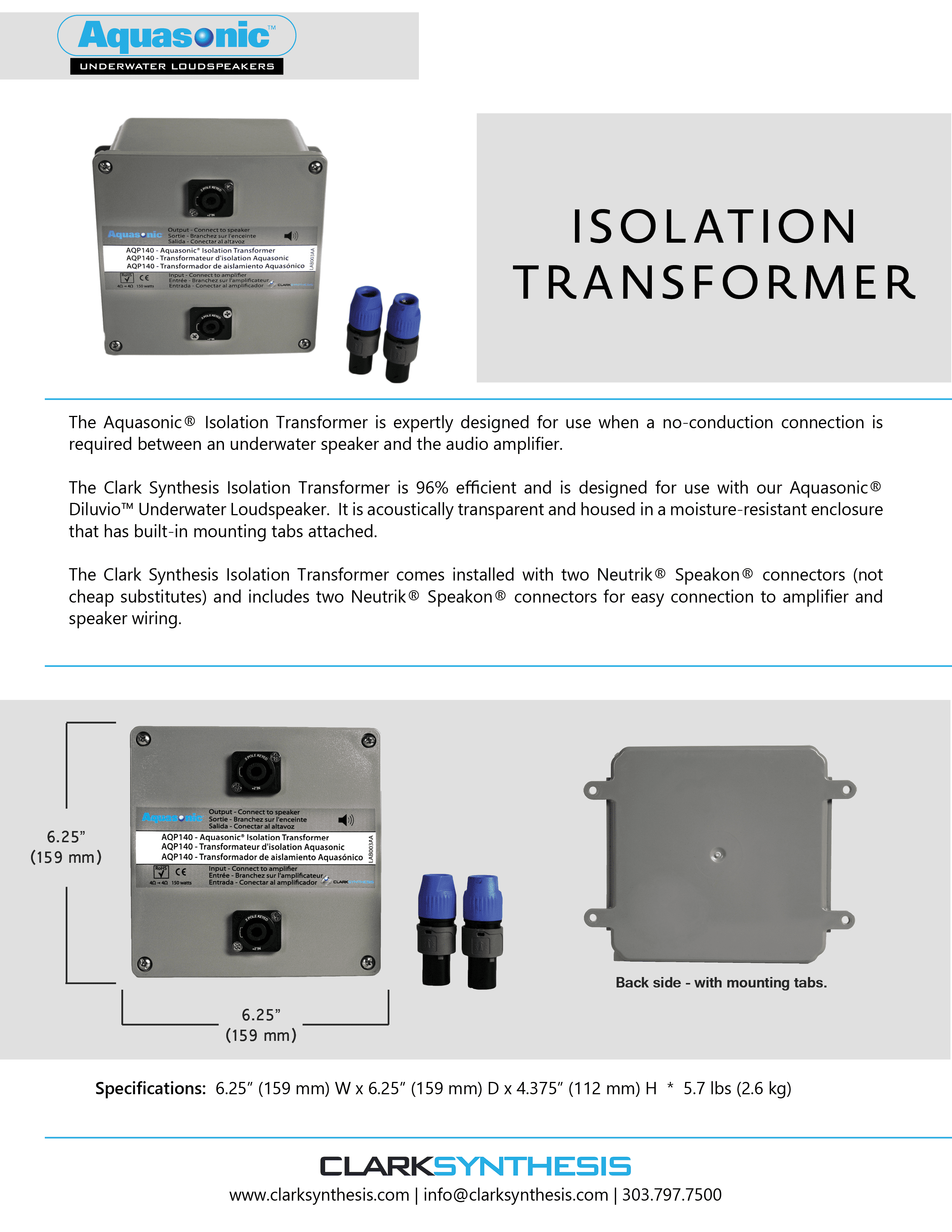

Isolation Transformer

The Aquasonic® Isolation Transformer is expertly designed for use when a no-conduction connection is required between an underwater speaker and the audio amplifier.

The Aquasonic® Isolation Transformer is expertly designed for use when a no-conduction connection is required between an underwater speaker and the audio amplifier.

The Clark Synthesis Isolation Transformer is 96% efficient and is designed for use with our Aquasonic® Diluvio™ Underwater Loudspeaker. It is acoustically transparent and housed in a moisture-resistant enclosure that has built-in mounting tabs attached.

The Clark Synthesis Isolation Transformer comes installed with two Neutrik® Speakon® receptacles and includes two Neutrik® Speakon® connectors for easy connection to amplifier and speaker wiring.

Specs:

  • Dimensions: 6.25” (159 mm) W x 6.25” (159 mm) D x 4.375” (112 mm) H
  • Weight: 5.7 lbs (2.6 kg)

February 28th, 2020|

Isolation Transformer Installation Guide             [...]

Isolation Transformer
High Resolution

Low Resolution

  • Underwater Loudspeaker Warranty

Are You Crazy??? Six Year Diluvio™ Underwater Loudspeaker Warranty

This is a very vulnerable story, a story that most companies would rather keep hidden. This story reveals the history of a product’s weaknesses, how we overcame those weaknesses, and something about a grandmother’s underwear. I came to Clark Synthesis in 2006.  At that time, Clark Synthesis had the best Underwater Loudspeaker in the industry. The Diluvio™ was, and [...]

  • Wiring 2 AQ339 Diluvioᵀᴹ Underwater Loudspeakers to the Amplifier

Wiring 2 AQ339 Diluvioᵀᴹ Underwater Loudspeakers to the Amplifier

Wiring 2 AQ339 Diluvioᵀᴹ Underwater Loudspeakers to the Amplifier Step 1: Attach Speaker 1 Black Wire to Speaker 2 White Wire Step 2: Attach Speaker 2 Black Wire to - Connector Step 3: Attach Speaker 1 White Wire to + Connector Enjoy!! Clark Synthesis recommends an amplifier rated 125-150 Watts at 8 Ohms (Pay Attention to the Ohms!) For more information [...]

  • Wiring 1 AQ339 Diluvioᵀᴹ Underwater Loudspeaker to the Amplifier

Wiring 1 AQ339 Diluvioᵀᴹ Underwater Loudspeaker to the Amplifier

Wiring 1 AQ339 Diluvioᵀᴹ Underwater Loudspeaker to the Amplifier Step 1: Attach the White Wire to the + Connector Step 2: Attach the Black Wire to the – Connector Enjoy!! Clark Synthesis recommends an amplifier rated 125-150 Watts per channel at 4 ohms (Pay Attention to the 4 Ohms!) For more information contact Clark Synthesis 303-797-7500 info@clarksynthesis.com www.clarksynthesis.com [...]

  • Wiring 4 AQ339 Diluvioᵀᴹ Underwater Loudspeakers and Isolation Transformers to the Amplifier

Wiring 4 AQ339 Diluvioᵀᴹ Underwater Loudspeakers and Isolation Transformers to the Amplifier

Wiring 4 AQ339 Diluvioᵀᴹ Underwater Loudspeakers and Isolation Transformers to the Amplifier Step 1: Place the Isolation Transformers in a Dry Location Step 2: Connect Speakers to Isolation Transformer Outputs Step 3: Connect Cables to Isolation Transformer Inputs Step 4: Attach Cable 1 Black Wire to Cable 4 White Wire Step 5: Attach Cable 2 Black Wire to Cable 3 White [...]

  • Wiring 2 AQ339 Diluvioᵀᴹ Underwater Loudspeakers and Isolation Transformers to the Amplifier

Wiring 2 AQ339 Diluvioᵀᴹ Underwater Loudspeakers and Isolation Transformers to the Amplifier

Wiring 2 AQ339 Diluvioᵀᴹ Underwater Loudspeakers and Isolation Transformers to the Amplifier Step 1: Place the Isolation Transformers in a Dry Location Step 2: Connect Speakers to Isolation Transformer Outputs Step 3: Connect Cables to Isolation Transformer Inputs Step 4: Attach Cable 1 Black Wire to Cable 2 White Wire Step 5: Attach Cable 2 Black Wire to - Connector Step [...]

  • Wiring 1 AQ339 Diluvioᵀᴹ Underwater Loudspeaker and Isolation Transformer to the Amplifier

Wiring 1 AQ339 Diluvioᵀᴹ Underwater Loudspeaker and Isolation Transformer to the Amplifier

Wiring 1 AQ339 Diluvioᵀᴹ Underwater Loudspeaker and Isolation Transformer to the Amplifier Step 1: Place the Isolation Transformer in a Dry Location Step 2: Connect the Speaker to the Isolation Transformer Output Step 3: Connect a Cable to the Isolation Transformer Step 4: Attach the Cable Black Wire to – Connector Step 5: Attach the Cable White Wire to + Connector [...]

Load More Posts

Yes. We are delighted to build a custom speaker for your swimming pool. Contact us for pricing and lead time.

The Diluvio™ comes with 100 feet (30.5 meters) of underwater cable attached.

Need a longer cable?  We can make speakers with longer cables upon request.

No. You can splice the new speaker into the old cable. You can get an underwater splice kit from your local electrical supply store.
