All-Weather Transducer (AW339)

This transducer was designed to withstand the challenging environmental conditions found around hot tubs, spas, whirlpools, boat hulls, and outdoor decks. Knowing that transducers could activate the materials used to construct these structures (usually fiberglass and wood), the developers created the AW339 All-Weather transducer. Today, this transducer offers its users the flexibility of a hidden mount paired with the gift of surprisingly-clear, full-frequency sound.

The AW339 All-Weather Transducer is the weather-resistant version of the TST329 Gold. Specifically designed to withstand rain and humidity, the AW339 can handle many adverse conditions that would damage ordinary speakers or transducers. The AW329 can turn a deck, hot tub, or boat hull into a full- frequency speaker, and produce full-fidelity sound in a variety of climates and environments.
Originally developed for military and commercial training simulators, Full Contact Audio® transducers were specifically designed to transfer sounds like gunshots and explosions into a tactile experience that can be felt as well as heard.
The AW339 All-Weather Transducer requires an amplifier for operation. Clark Synthesis recommends using an amplifier stable at 4 ohms that can deliver 125-150 watts @ 4 ohms (per transducer).
Specs:
  • Continuous power handling: 135 watts
  • Impedance: 4 ohms
  • Overload Protection: Polyswitch
  • Frequency Response: 10Hz to 17kHz
  • Electrical Connection: 3ft. – 16 guage, 2 wire
  • Dimensions: 8 in. diam. x 2.25 in. high
  • Recommended Amplification: 125 – 150 watts at 4 ohms

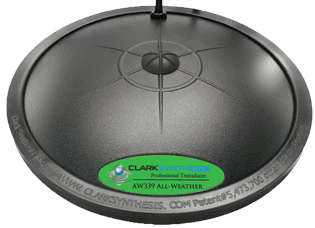

AW339 All Weather (Top View)
High Resolution

Low Resolution

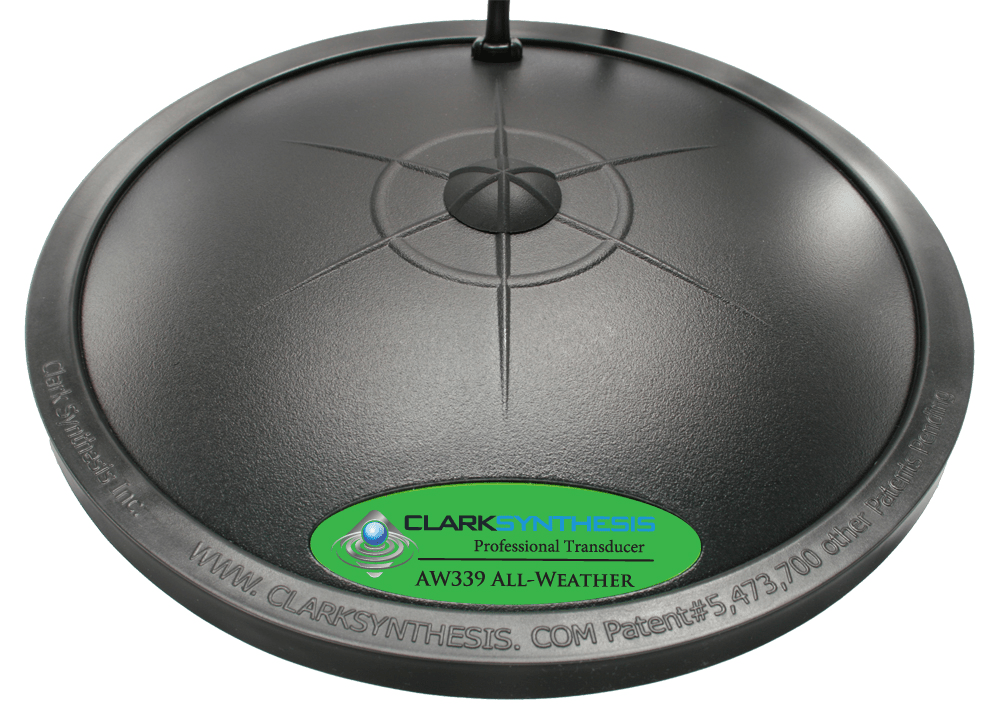

AW339 All Weather (Tilted)
High Resolution

Low Resolution

  • Clark Synthesis Products in Research

Clark Synthesis Products in Research

Researchers find the most clever ways to apply Clark Synthesis technology. They do things like using Tactile Sound Transducers to simulate earthquakes. They use the Underwater Loudspeakers to study how marine life responds to certain sounds. Here is what an inquiry from a researcher sounds like: “I’m doing research on using sound waves underwater to destroy fish eggs from invasive species. Can you [...]

  • an overwhelming experience

An Overwhelming Experience

Shortly after taking over management of Clark Synthesis, I was invited to the Stage Theater (now the Dorota and Kevin Kilstrom Theater) at the Denver Center for the Performing Arts. They were staging a new play, and the Director was interested in adding Tactile Sound / Haptic Feedback to the VIP seating. I wanted to handle this demo personally, so I grabbed four TST429 Platinum Transducers, a couple of stereo amplifiers, and drove to downtown Denver.  The Stage [...]

  • Finding the Sweet Spot

Finding the Sweet Spot

https://vimeo.com/529420012 Finding the Sweet Spot There is an interesting phenomenon that occurs when listening to music with Tactile Sound Transducers. Musicians appear It works like this: Place a Tactile Sound transducer in your favorite chair Set your speakers for optimum listening Start with the Transducer volume all the way down Turn the volume down slightly on your subwoofer Now put [...]

Injecting Fear into Viewer’s Souls

One of the reasons I love working at Clark Synthesis began with an amazing experience I had early in my time at the company. I was new to the company and wanted to learn more about the products. So, I took a few TST429 Platinum Transducers home and installed them in my sofa I put a DVD into the player, and started watching the original Jurassic Park movie.    Now, I had seen this movie many times and [...]

  • Mounting A Transducer in a Steel Frame Recliner

Mounting A Transducer in a Steel Frame Recliner

https://vimeo.com/527349475 Mounting a Transducer in a Recliner with a Steel Frame There are 2 methods for mounting: To the steel frame – 0:29 To a hardwood bridge – 2:31 CAUTION: The Transducer should not interfere with the reclining mechanism or touch the floor when mounted! Mounting to the steel frame Flip the recliner over Find a place on the frame [...]

  • Subwoofers in Cinemas - The Problem No One Discusses

Subwoofers in Cinemas – The Problem No One Wants to Discuss

It’s the movie watching problem no-one wants to talk about, but someone needs to address. What is that problem? Subwoofers in Cinemas. And why are subwoofers a problem? Seat to seat volume variance. Let’s take a look at this problem and how to solve it.  Some years ago, I had the privilege, as part of a group from the Audio Engineering Society, of visiting NBC Universal Studios – Studio Post. [...]

How are the AW339s mounted to a wood deck?2021-04-01T13:53:05-06:00

The AW339 comes with all the mounting hardware that you will need. For more information, click HERE.

How many AW339s are used on a wood deck?2020-08-11T16:07:00-06:00

Since most wood decks are made with soft woods, we recommend one AW339 for every 4 foot X 4 foot (1.2 meter x 1.2 meter) area.

How many TSTs do I need to turn my spa/hot tub into a speaker?2020-08-11T15:55:17-06:00

We recommend using one TST for smaller hot tubs and two for larger hot tubs.

Are TSTs used in wellness products?2020-08-11T15:50:51-06:00

Yes!  Clark Synthesis TSTs are used in therapy chairs, therapy beds, massage tables, etc. If you do a Google search for Vibroacoustic, you will find many products that contain Clark Synthesis TSTs.

What are Tactile Sound Transducers (TSTs)?2020-08-11T15:50:28-06:00

Clark Synthesis Tactile Sound Transducers (TSTs) transform pure audio as electrical energy into pure audio as vibrational energy.  TSTs are much more than shakers.  Shakers only make things shake.  TSTs faithfully reproduce audio signals bringing new levels of realism and enjoyment to VR spaces, Home Theaters, Simulators, Movie Theaters, etc.

Can I mix different TSTs?2020-08-11T15:49:57-06:00

Yes. Be sure to wire the TSTs in-phase so they all work together.

Does the TST require ventilation?2020-08-11T15:49:30-06:00

Ventilation is not always required. However, warmer climates and environments may require ventilation. Contact Clark Synthesis for specific recommendations.

What clearance do you recommend for mounting the TST?2020-08-11T15:49:02-06:00

We recommend 3 inches of clearance.

The amplifier is located far away from the TST. What size wire should I use?2020-08-11T15:48:29-06:00

We recommend 16 gauge wire for up to 50 feet of length; 14 gauge wire for 50 feet to 150 feet; 12 gauge for distanced greater than 150 feet.

What does it mean to wire TSTs in-phase?2020-08-11T14:45:10-06:00

This means both TSTs are wired the same way to the amplifier.

Why mount AW339 to a wood deck?2020-08-11T14:37:41-06:00

Having a subwoofer on your deck is wonderful for outdoor sound, but might be irritating to your neighbors. AW339s produces subwoofer signals above and below a wood deck. Your neighbors will never know.

How would I mount the AW339 to my spa/hot tub?2020-08-11T14:31:53-06:00

The AW339 is a great addition to your spa/hot tub. We recommend one transducer for a small hot tub and two transducers for a large hot tub.

Here’s how to do it:

Step 1. Get to the underside of your hot tub.

Step 2. Decide where to put your transducers.

Step 3. Clear out any insulation so that you can reach the fiberglass wall.

Step 4. You may have to sand the fiberglass wall to make it flat and smooth. (CAUTION: if you sand down the fiberglass, wear proper breathing protection, eye protection and skin protection).

Step 5. Use a two-part slow-cure epoxy to attach the Unimount Brackets to the fiberglass wall.  The Unimount Brackets are included with the AW339s.

Step 6. Wait for the epoxy to fully cure.

Step 7.  Attach each AW339 to each Unimount Bracket.

Step 8. Wire the AW339s to your sound system and enjoy!

What is Tactile Sound?2020-08-11T14:27:50-06:00

Tactile Sound is pure audio that is felt through touch and is heard through bone conduction.

What amplifier should I use with the TST?2020-08-11T14:27:33-06:00

We recommend a 125 watt amplifier at 4 ohms for the TST239 and a 150 watt amplifier at 4 ohms for the three-series and four-series TSTs.

Which TSTs can I use in a dirty environment?2020-08-11T14:27:01-06:00

We recommend the TST329 Gold TST for dirty environments. We recommend the AW339 for dirty environments that may be extremely damp.
