Isolation Transformer Installation Guide

Transformer



Connector



























Cable





Wires





Connector









Tighten Screws

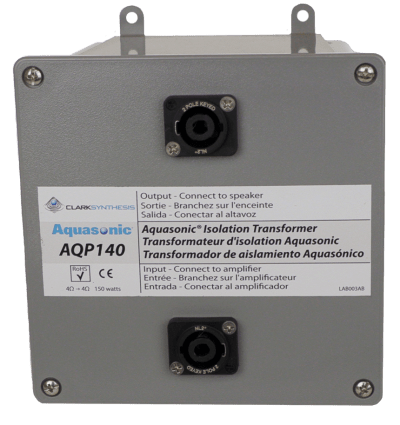

  1. Mount or place the transformer in a dry, indoor location

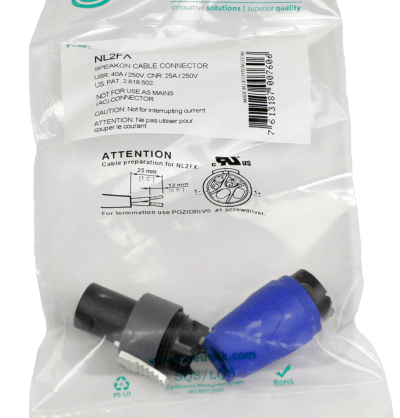

  2. Locate and open the package with the speakON connector

















  3. Remove 1.0 in. (25 mm) of the cable’s outer jacket

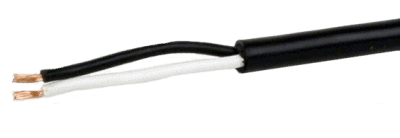

  4. Remove 0.5 in. (12 mm) of insulation from each wire

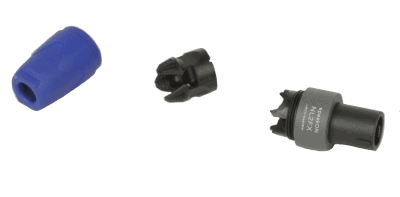

  5. Place the black plastic piece inside the blue sleeve

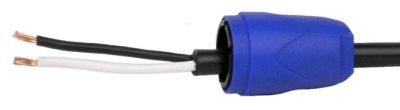

  6. Place the blue sleeve over the wire











  7. Loosen the screws on the connector a few turns

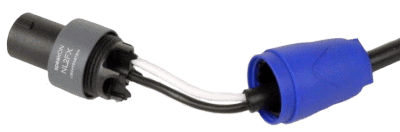

  8. Place the positive wire (white) into the 1+ slot and the negative wire (black) into the 1- slot









  9. Tighten both screws









  10. Pull on the wire to ensure the connection is secure







  11. Align the tabs on the black piece with the recess’ on the connector

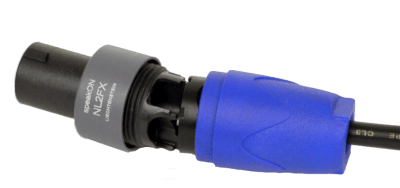

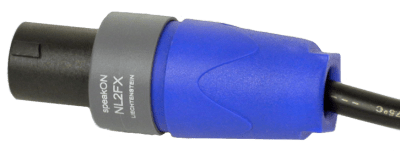

  12. Push the blue sleeve up and screw into the connector until tight

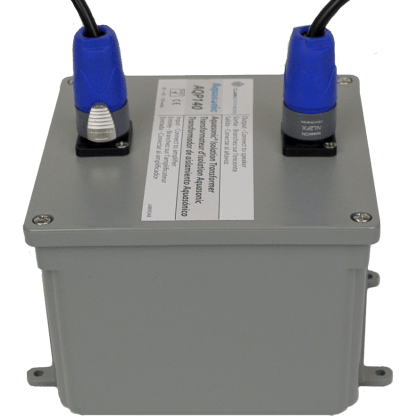

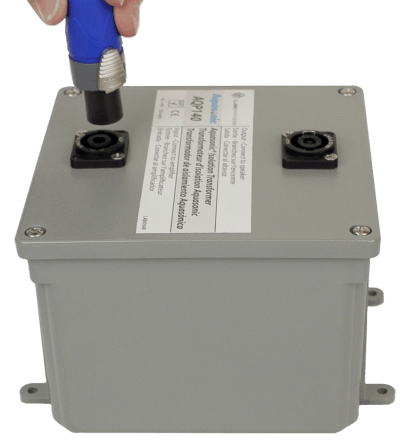

  13. Insert the connector into the transformer and turn clockwise until you hear a click

























  14. Repeat this process for the speaker cable and connect it to the transformer



For more information check out Isolation Transformer Manual.
