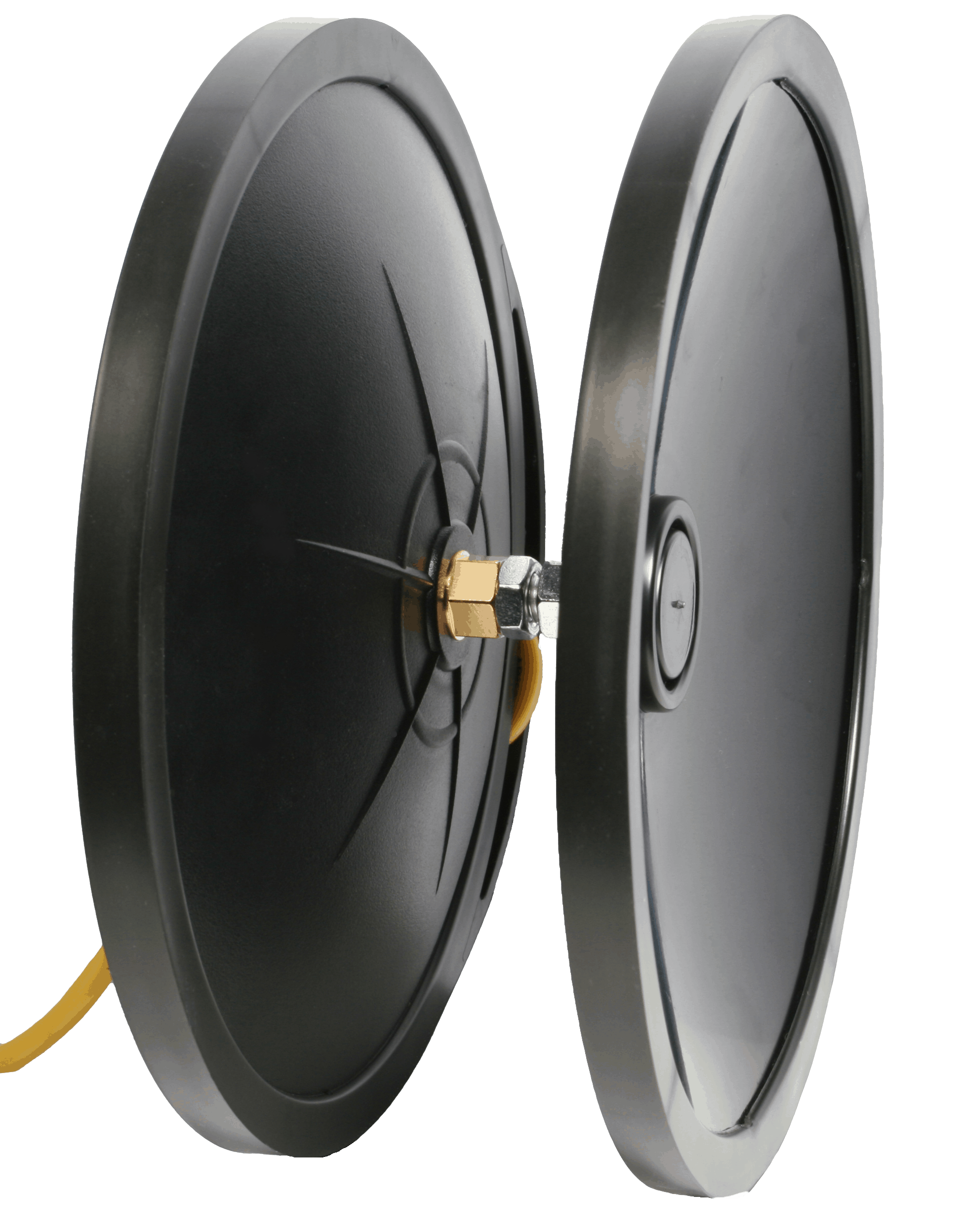

AQ339 Diluvioᵀᴹ Underwater Loudspeaker

The Diluvio™ Underwater Speaker is the world’s only full-frequency, full-fidelity underwater speaker. This state of the art speaker adds high-quality sound to your pool, enabling a wide array of swimming enthusiasts to enjoy the gift of music below the water’s surface.

The Diluvio™ Underwater Loudspeaker is the world’s only full-frequency, full-fidelity underwater loudspeaker. Backyard pool enthusiasts, lap swimmers and competitive swimmers agree the Diluvio™ turns any pool experience into something truly spectacular. The Diluvio™ brings water to life, allowing music and sound to be heard through the body below the water’s surface.

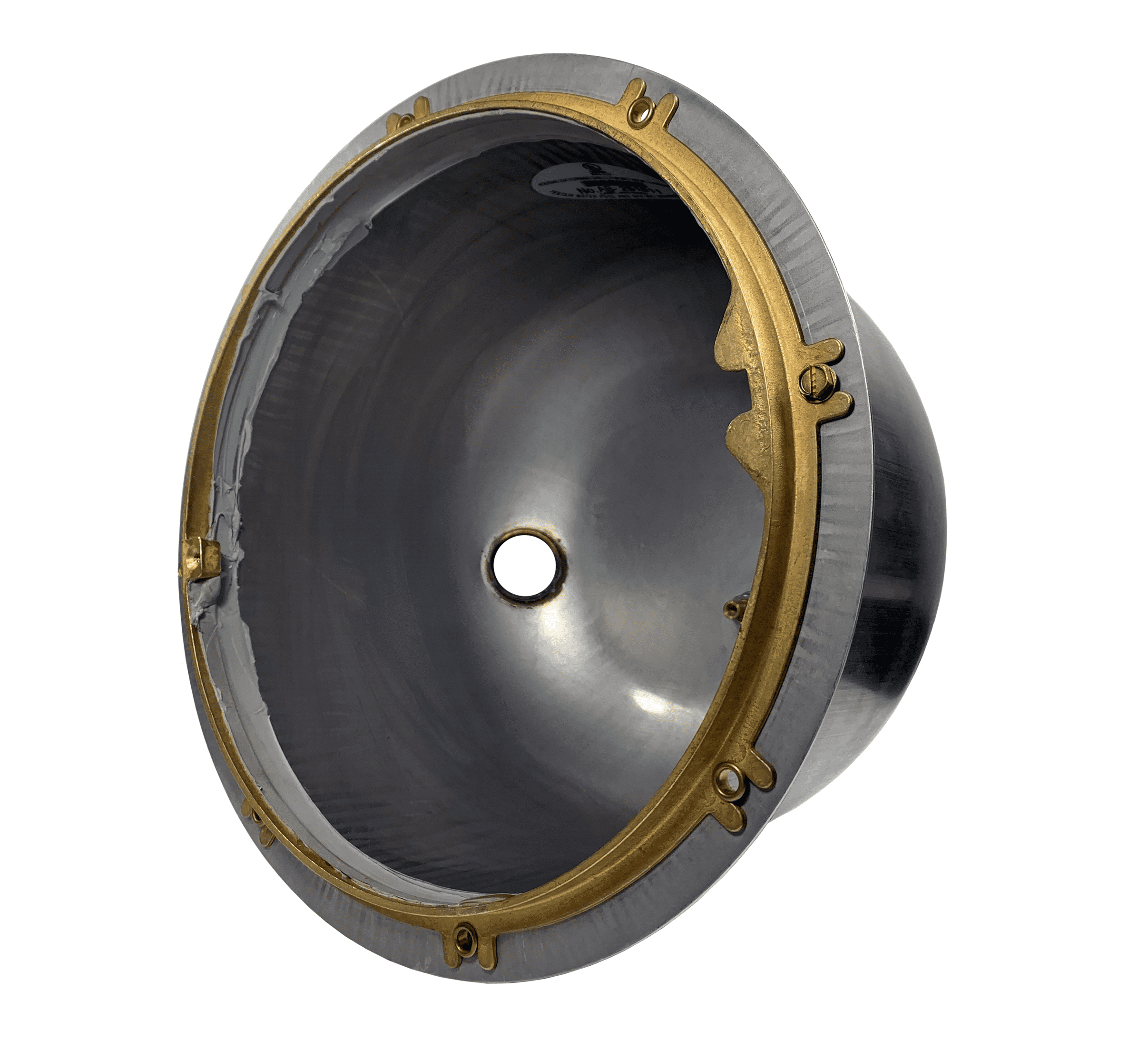

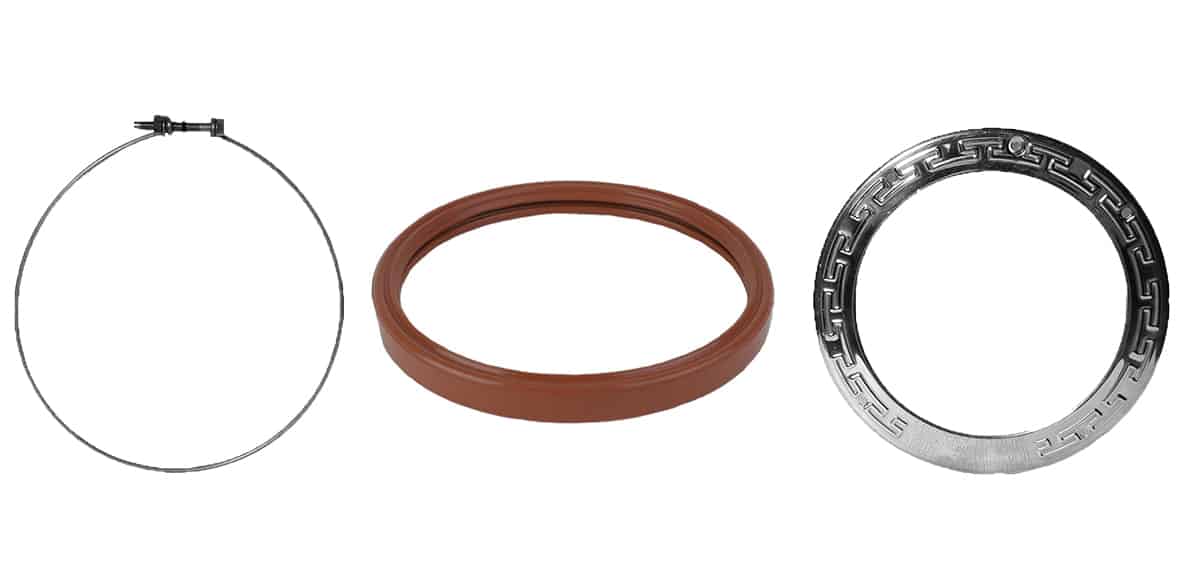

The Diluvio™ can be used in two different ways. For a permanent installation, the Diluvio™ can be mounted inside a large light niche with a face ring kit (sold separately). For users who require underwater sound in multiple locations, such as synchronized swim teams, a tether can be attached to the Diluvio™ so it can be used as a drop-in speaker.

The Diluvio™ Underwater Loudspeaker requires an amplifier for operation. Clark Synthesis recommends an amplifier stable at 4 ohms that can deliver 125-150 watts @ 4 ohms (per speaker).

Specs:

  • Continuous Power Handling: 135 watts
  • Impedance: 4 ohms
  • Overload Protection: Polyswitch
  • Frequency Respone: 20Hz to 17kHz
  • Electrical Connection: 100ft. – Underwater, 16-2 Wire
  • Dimensions: 8” (20.3cm) Dia. x 4.5” (11.5cm) Deep
  • Recommended Amplification: 125 – 150 W at 4 Ohms
  • Wiring 2 AQ339 Diluvioᵀᴹ Underwater Loudspeakers to the Amplifier

October 7th, 2020|

Wiring 2 AQ339 Diluvioᵀᴹ Underwater Loudspeakers to the Amplifier Step 1: [...]

  • Wiring 1 AQ339 Diluvioᵀᴹ Underwater Loudspeaker to the Amplifier

October 7th, 2020|

Wiring 1 AQ339 Diluvioᵀᴹ Underwater Loudspeaker to the Amplifier Step 1: [...]

  • Wiring 4 AQ339 Diluvioᵀᴹ Underwater Loudspeakers and Isolation Transformers to the Amplifier

October 6th, 2020|

Wiring 4 AQ339 Diluvioᵀᴹ Underwater Loudspeakers and Isolation Transformers to the [...]

  • Wiring 2 AQ339 Diluvioᵀᴹ Underwater Loudspeakers and Isolation Transformers to the Amplifier

October 6th, 2020|

Wiring 2 AQ339 Diluvioᵀᴹ Underwater Loudspeakers and Isolation Transformers to the [...]

  • Wiring 1 AQ339 Diluvioᵀᴹ Underwater Loudspeaker and Isolation Transformer to the Amplifier

October 6th, 2020|

Wiring 1 AQ339 Diluvioᵀᴹ Underwater Loudspeaker and Isolation Transformer to the [...]

  • Wiring 4 AQ339 Diluvioᵀᴹ Underwater Loudspeakers to the Amplifier

October 6th, 2020|

Wiring 4 AQ339 Diluvioᵀᴹ Underwater Loudspeakers to the Amplifier Step 1: [...]

February 28th, 2020|

Isolation Transformer Installation Guide             [...]

December 26th, 2019|

The “Secret” of Diluvio™ Underwater Loudspeakers  Have you ever wondered how underwater loudspeakers [...]

December 26th, 2019|

Underwater Speaker Placement Essentials Where do you place underwater speakers to [...]

December 26th, 2019|

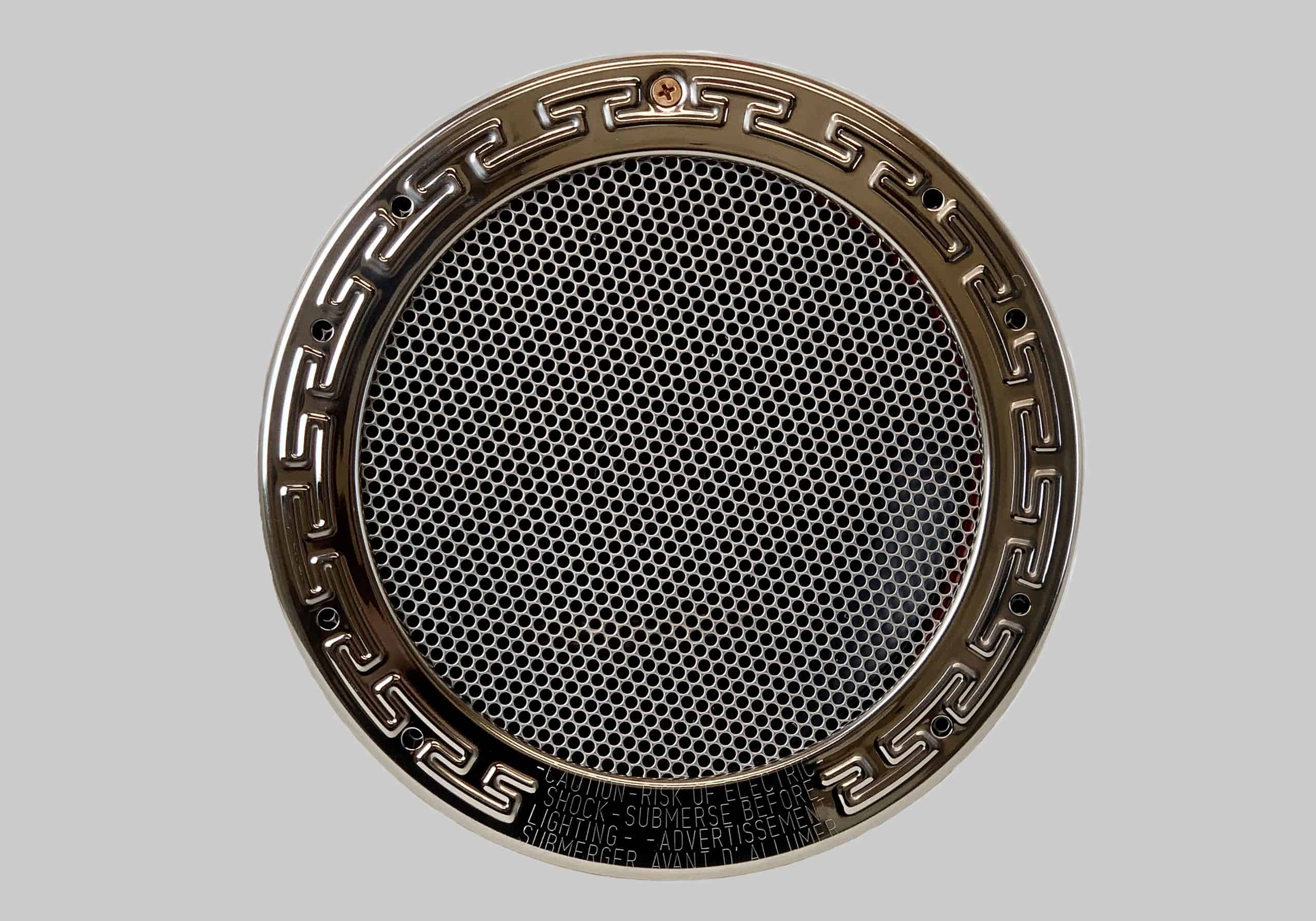

Here is how to install the AQ339 Diluvioᵀᴹ Underwater Loudspeaker, with screen, in a [...]

December 26th, 2019|

Here is how to install the AQ339 Diluvioᵀᴹ Underwater Loudspeaker in [...]

December 26th, 2019|

Introducing our Norway distributor – NCMS (Norwegian Custom Media Solutions) In [...]

December 26th, 2019|

Colorado USA - Home to Chris and Ginger. Ginger was diagnosed [...]

December 26th, 2019|

Watch this short video of actual people experiencing our underwater Loudspeaker [...]

December 26th, 2019|

Introducing Our UK Distributor – FrontRowᵀᴹ In the beautiful town of [...]

AQ339 Diluvio Underwater Loudspeaker
High Resolution

Low Resolution

  • Manatee Testing in Florida with Underwater speakers

Manatee Hearing Testing In Florida

After receiving a grant from the Florida Marine Research Institute, a group from New College of Florida began conducting experiments to analyze the hearing capabilities of West Indian Manatees. Utilizing several Clark Synthesis [...]

By |January 7th, 2019|
  • Sea Turtle Hearing Studies

Sea Turtle Hearing Studies

Mote Marine Laboratory in Sarasota, Fla., conducted hearing studies with two resident loggerhead sea turtles, Shelley and Montego. Using Clark Synthesis Aquasonic Underwater Speakers, we investigated how well these sea turtles can detect [...]

By |July 18th, 2018|

Liquid Vibrations Therapy Pool

Liquid Vibrations is a charity registered in England since 2013. We provide underwater listening sessions combined with aquatic body therapy to people with special and complex needs. The sessions serve to: Promote relaxation [...]

By |July 18th, 2018|

Yes. Send us a PDF of your pool. We will review the pool design, ask some questions, then make recommendations.  This service is provided at no cost.

Are you dropping them in? It takes four Diluvio™ speakers to cover an Olympic swimming pool. Do you want to permanently mount the speakers? If so, please contact us for recommendations.

Yes. We are delighted to build a custom speaker for your swimming pool. Contact us for pricing and lead time.

The Diluvio™ comes with 100 feet (30.5 meters) of underwater cable attached.

Need a longer cable?  We can make speakers with longer cables upon request.

Yes! Attach a rope one of the holes in the rubber ring. Use the rope to lower the speaker into the swimming pool, and to raise the speaker from the swimming pool.

Click here to see the installation guide for the AQ339.

Yes!  Clark Synthesis TSTs are used in therapy chairs, therapy beds, massage tables, etc. If you do a Google search for Vibroacoustic, you will find many products that contain Clark Synthesis TSTs.

Clark Synthesis Tactile Sound Transducers (TSTs) transform pure audio as electrical energy into pure audio as vibrational energy.  TSTs are much more than shakers.  Shakers only make things shake.  TSTs faithfully reproduce audio signals bringing new levels of realism and enjoyment to VR spaces, Home Theaters, Simulators, Movie Theaters, etc.

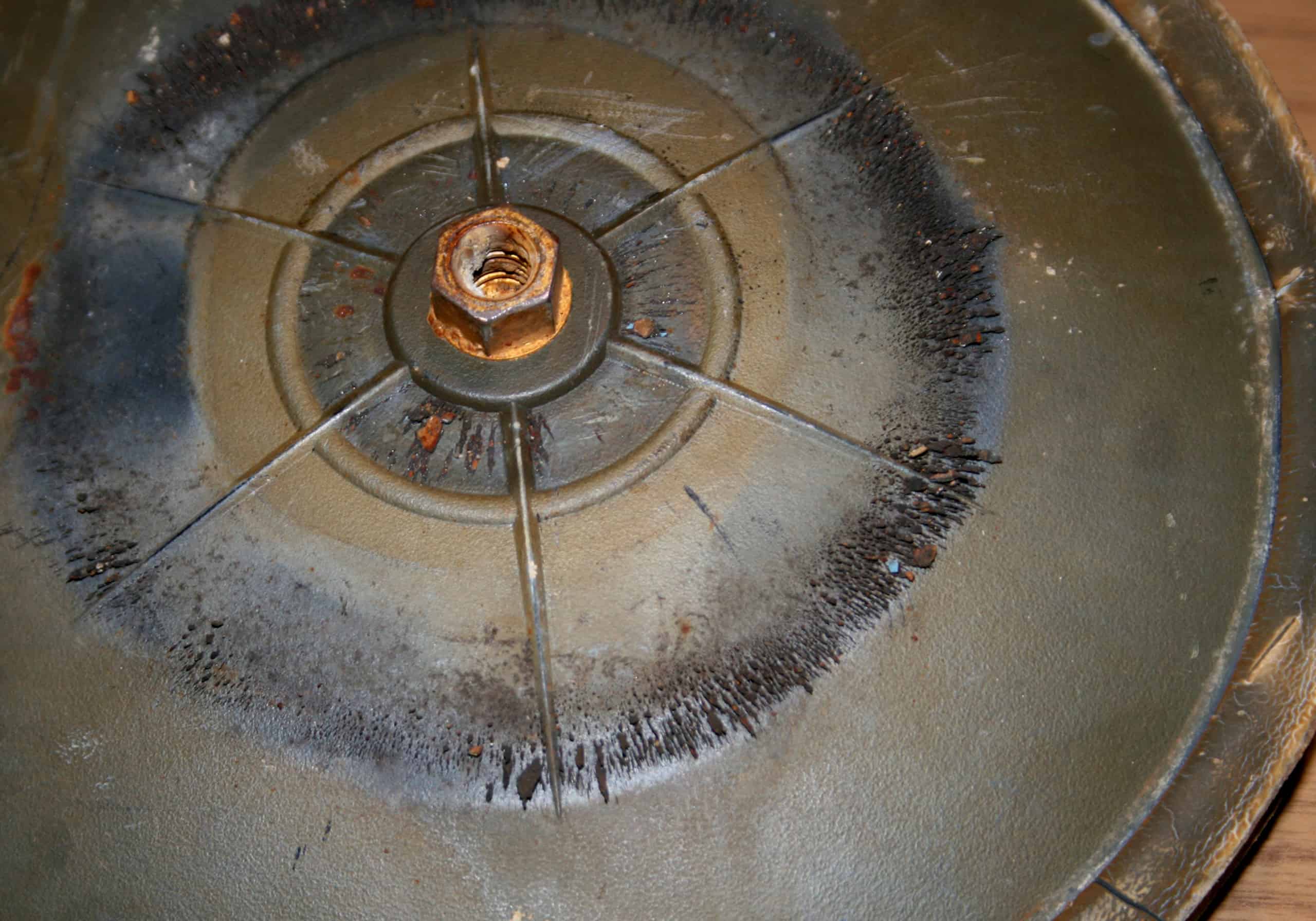

Yes. To prevent minerals from building up on the speaker, make sure that the sacrificial anode is working.

It depends on the size of your pool. We recommend one speaker for every 20 foot x20 foot area (6 meters x 6 meters area). Click here to learn more about speaker placement.

No. You can splice the new speaker into the old cable. You can get an underwater splice kit from your local electrical supply store.

Click here to see the installation guide for the AQ339.

Tactile Sound is pure audio that is felt through touch and is heard through bone conduction.
